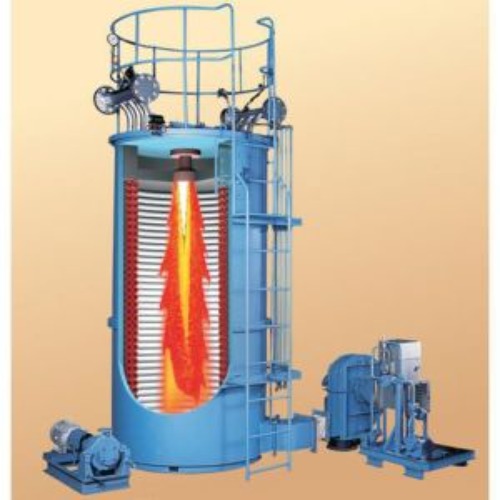

Vertical Thermic Fluid Heater

Product Description

A Vertical Thermic Fluid Heater (TFH) is a type of industrial heating system used to transfer heat to a thermal fluid, which in turn provides heating for various applications. Unlike traditional boilers that use steam, a thermic fluid heater operates using a special heat-transfer fluid that circulates through the system. These heaters are often used in industries that require continuous, reliable heat, such as chemical processing, oil refining, and textiles.

Key Features of a Vertical Thermic Fluid Heater:

1. Vertical Design: The primary distinction of the vertical thermic fluid heater is its upright, vertical orientation, which saves space and is suitable for installations where space is limited. The vertical design allows for efficient heat transfer and makes the system compact.

2. Thermic Fluid: Instead of water or steam, a specially formulated thermal fluid is used to absorb heat from the burner. These fluids typically have high thermal stability and can operate at high temperatures without degrading.

3. Fuel Options: Vertical thermic fluid heaters can run on a variety of fuels, including natural gas, diesel, coal, or even renewable energy sources, depending on the design of the burner and the requirements of the application.

4. Heat Transfer Efficiency: The heat transfer fluid circulates through the heaters system, absorbing heat from the burner and then transferring this heat to the desired process. Since thermic fluid heaters use a closed-loop system, they are more efficient than traditional heating methods.

5. Safety Features: The system is often equipped with multiple safety features like pressure relief valves, temperature sensors, and automatic shut-off systems to ensure safe operation under varying load conditions.

6. Applications: These heaters are commonly used in industries requiring uniform and precise heating at temperatures higher than what steam can provide. Some examples include:

   • Chemical and petrochemical plants

   • Pharmaceutical manufacturing

   • Food and beverage processing

   • Textile and rubber industries

7. Compactness: Vertical models are compact, requiring less floor space, making them ideal for smaller installations or where space is at a premium.

Working Principle:

1. Burner: The systems burner combusts fuel to generate heat.

2. Thermic Fluid: The generated heat is transferred to the thermic fluid that circulates through the heating coil or tubes.

3. Fluid Circulation: The heated thermic fluid is pumped through the system to the various heat exchangers or the areas where heat is required.

4. Heat Transfer: The fluid transfers its heat to the process or machinery that needs heating.

5. Return: The cooled fluid is returned to the heater to be reheated in a continuous loop.

Advantages:

• High Efficiency: Due to the high thermal stability of the fluids, they maintain their temperature more effectively than water or steam-based systems.

• Safety: Operating at lower pressures than steam, thermic fluid heaters are generally considered safer.

• Energy Savings: More efficient heat transfer leads to reduced energy consumption and lower operational costs.

Maintenance:

Like any industrial heating system, regular maintenance of vertical thermic fluid heaters is important to ensure optimal performance and longevity. This includes checking fluid levels, ensuring the integrity of the system, and regular cleaning to prevent clogging and degradation.

In summary, a Vertical Thermic Fluid Heater is a reliable, space-efficient, and energy-saving heating solution for industries that require precise and continuous heating at high temperatures.
